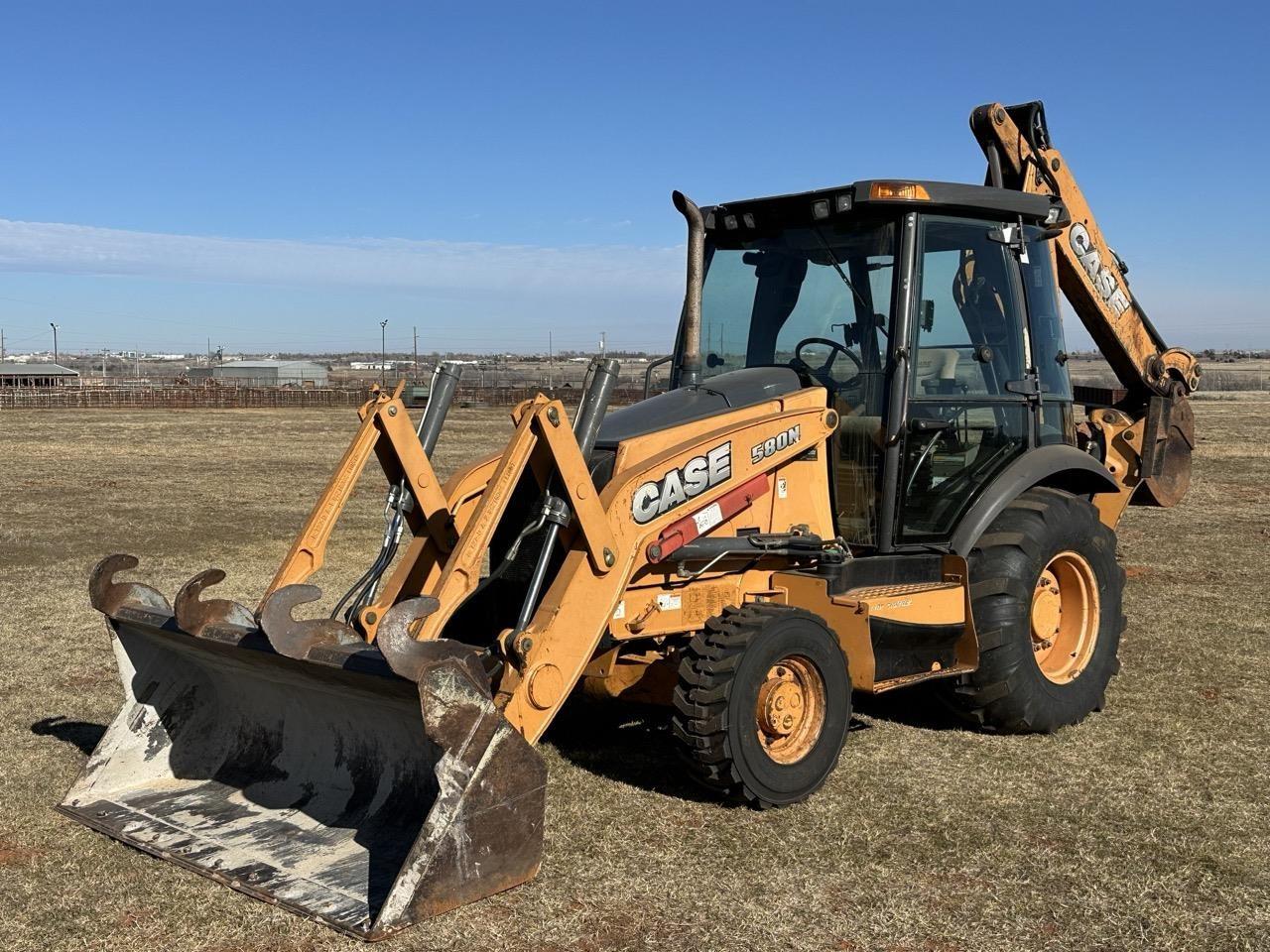

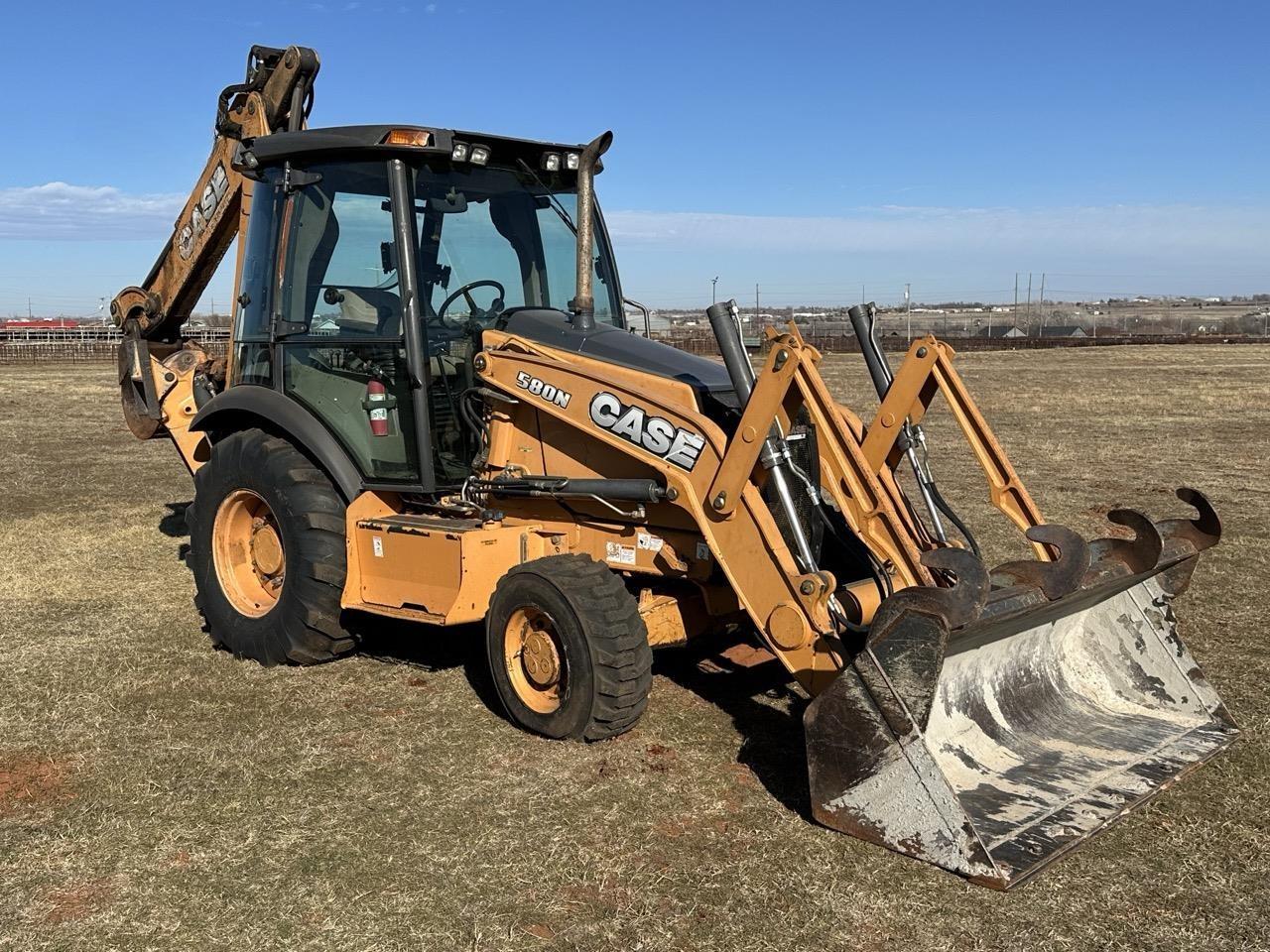

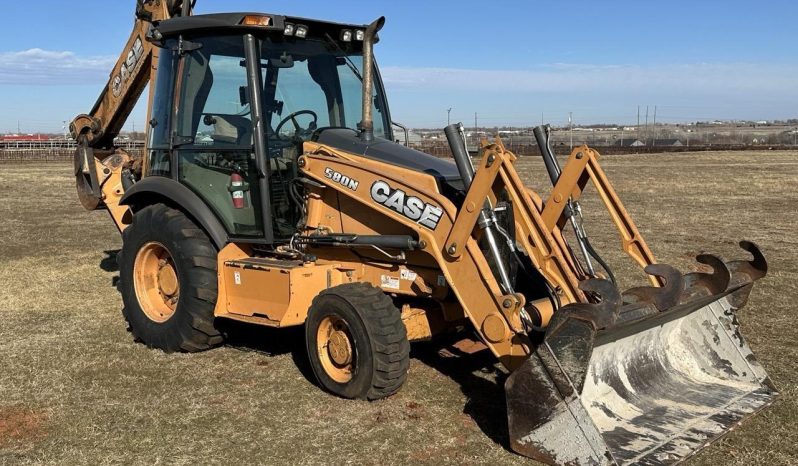

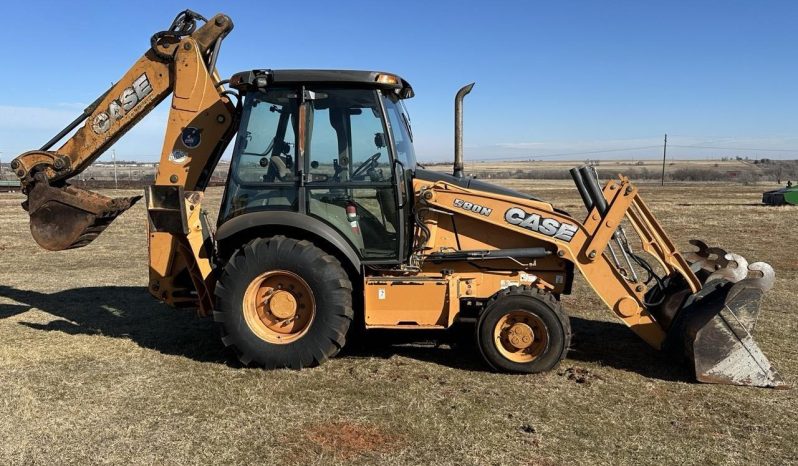

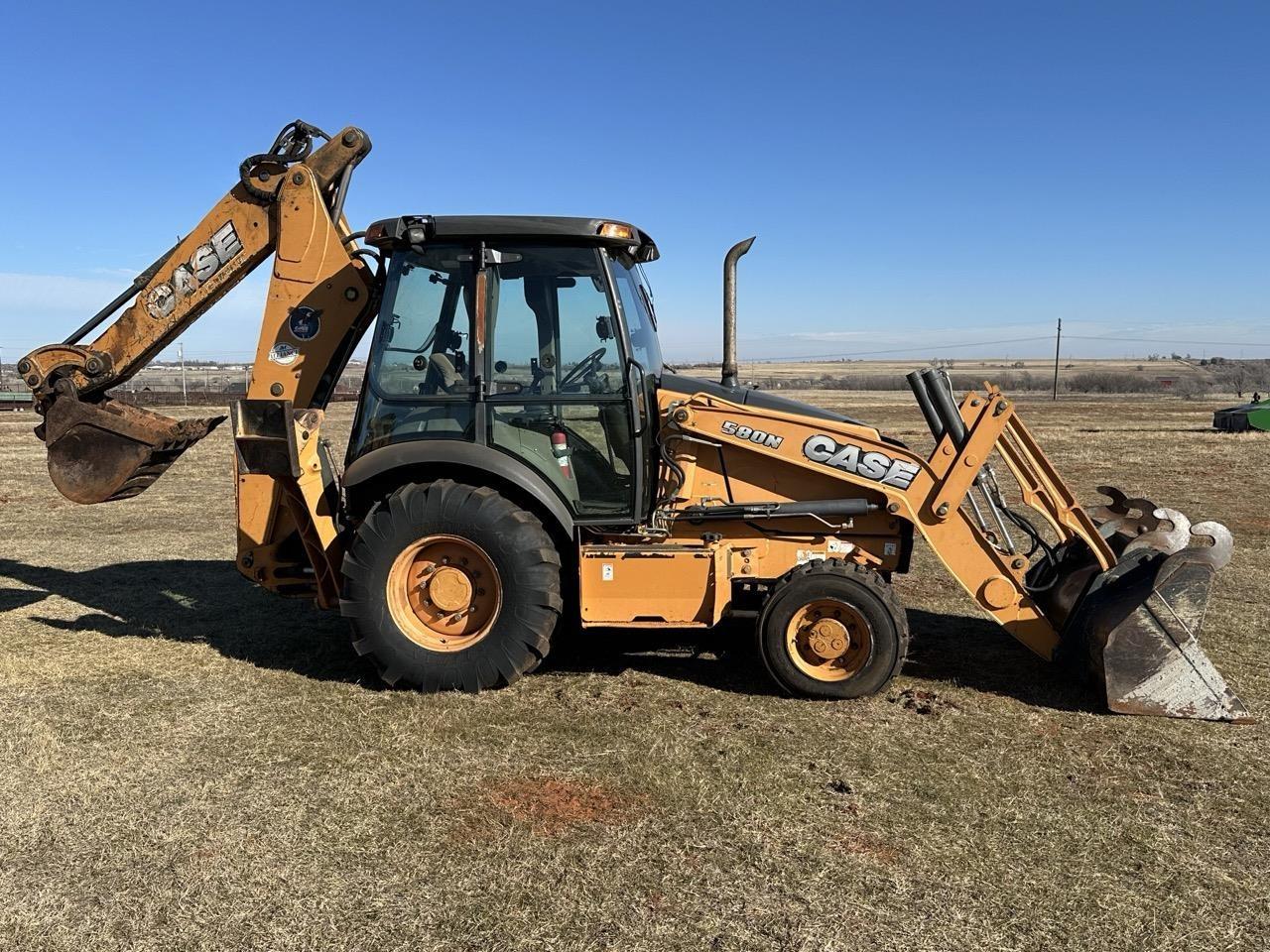

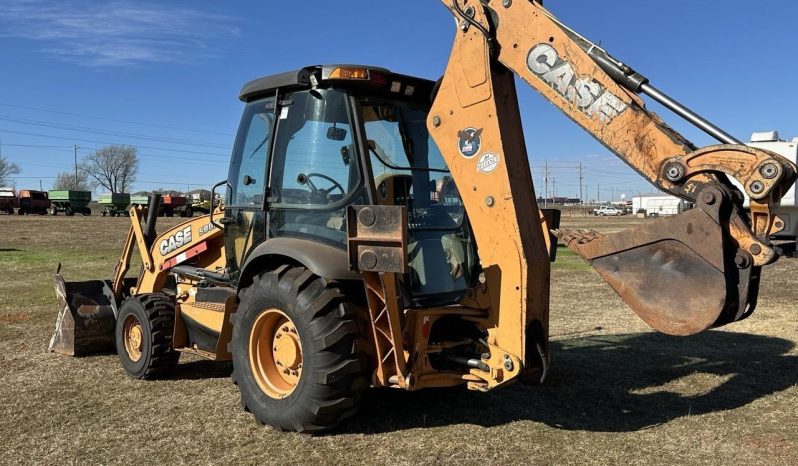

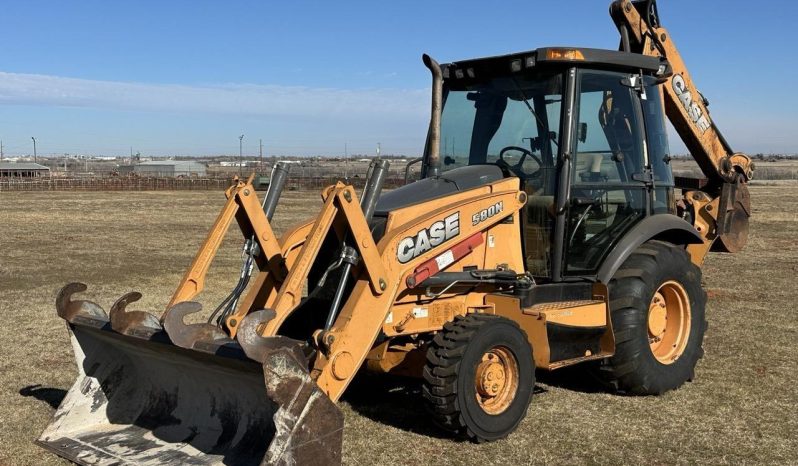

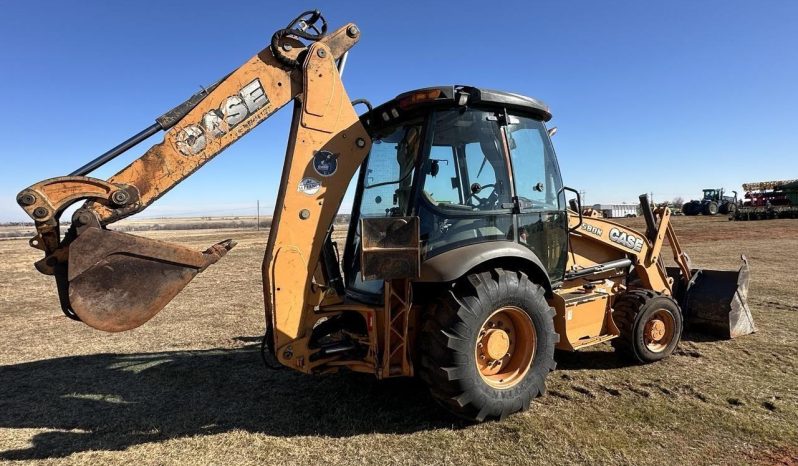

This 2012 CASE 580N is a reliable and well-maintained backhoe loader built for tough jobsite demands. With only 3,345 verified hours, it features a powerful engine, 4WD, and an extendahoe for added reach—perfect for digging, trenching, loading, and backfilling.

Key Specifications:

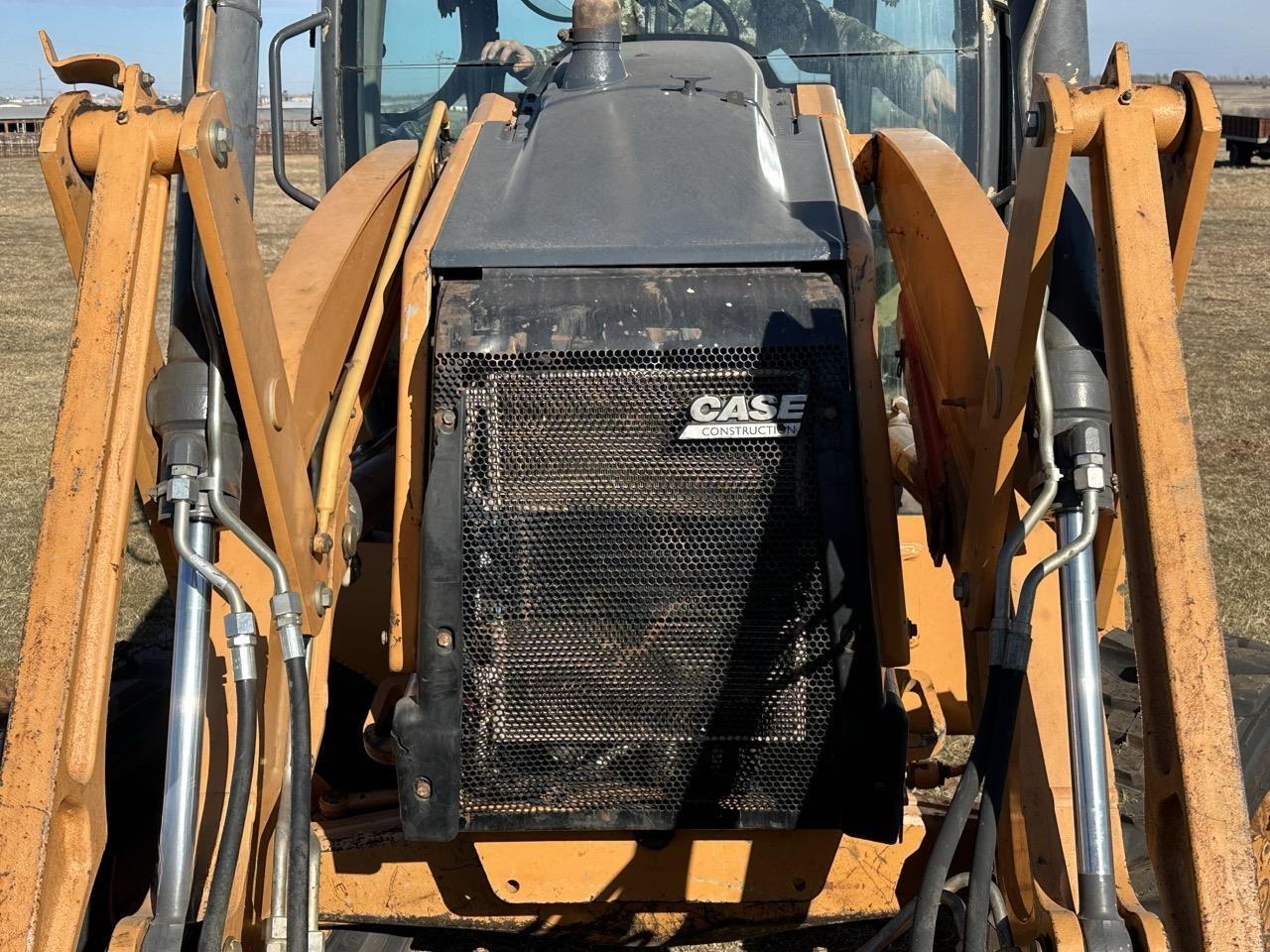

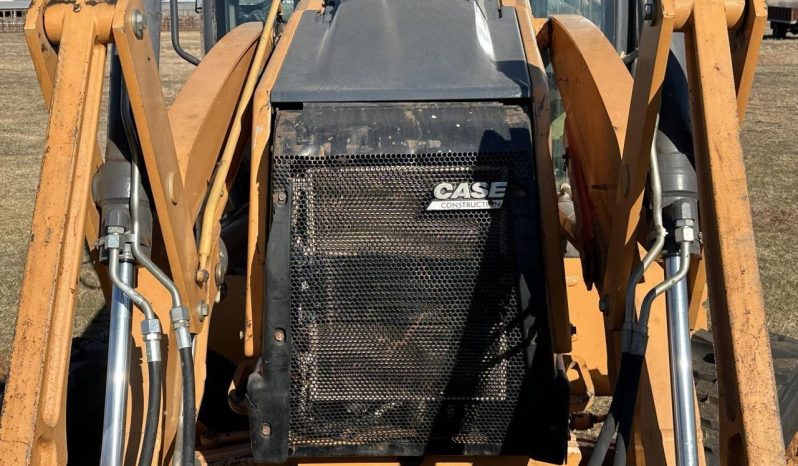

Engine:

  • Manufacturer: FPT (Model: F5BFL413C)

  • Type: 4-stroke turbo diesel, Tier 4 Final

  • Displacement: 3.4L (207.5 in³)

  • Gross Power: 90 hp (67 kW) @ 2,200 RPM

  • Net Power: 83 hp (62 kW) @ 2,200 RPM

  • Max Torque: 306 lb·ft (415 Nm) @ 1,400 RPM

  • Fuel Tank Capacity: 34.9 gallons

Powertrain:

  • Drive: 4WD

  • Transmission: Power Shuttle Synchromesh – 4 forward / 4 reverse gears

  • Max Speeds: 24.6 mph forward / 29.4 mph reverse

Dimensions & Weight:

  • Operating Weight: 17,751 lbs (8,052 kg)

  • Transport Size: 23.43 ft (L) x 6.8 ft (W) x 10.83 ft (H)

  • Ground Clearance: 1.25 ft (0.38 m)

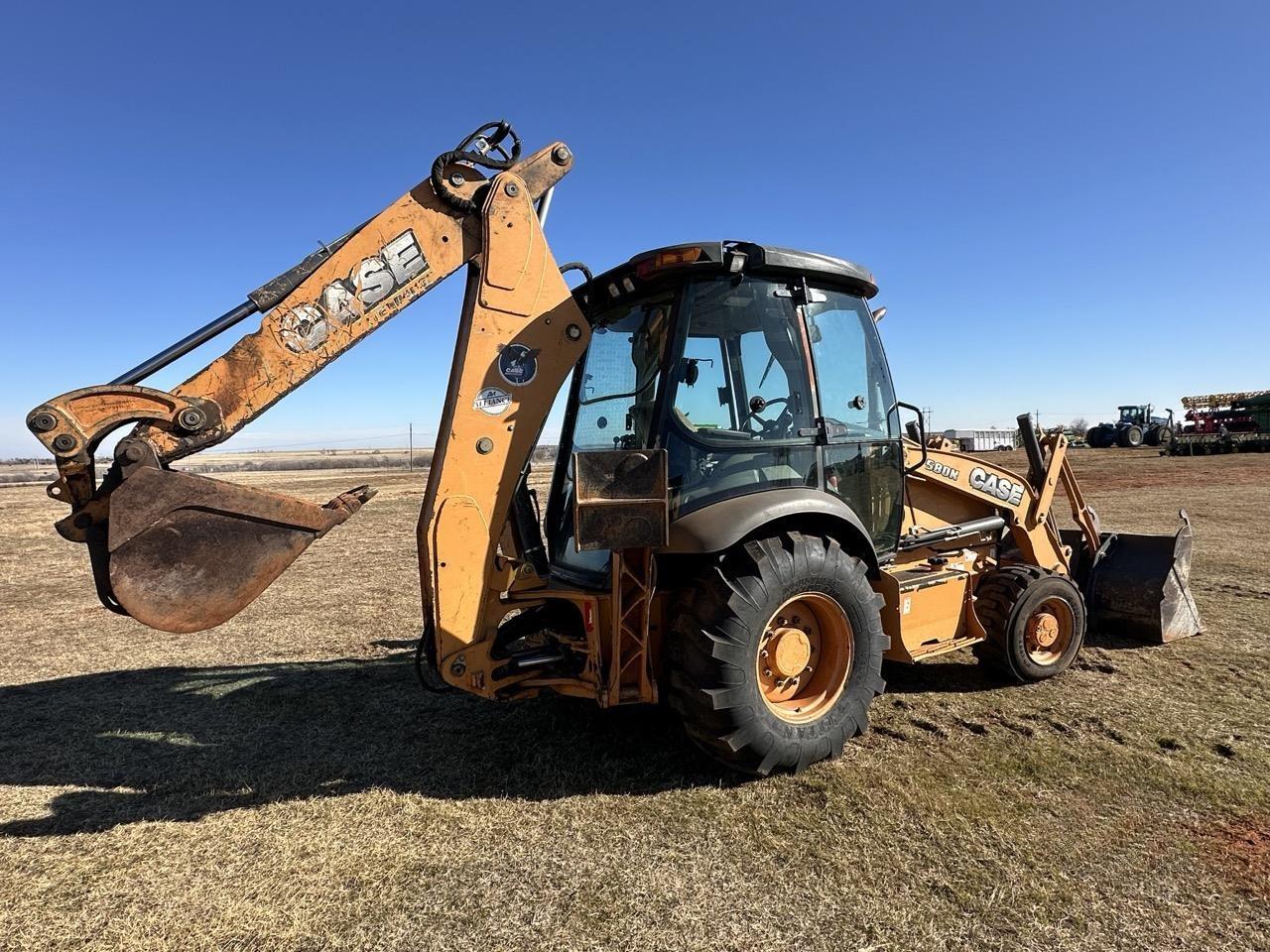

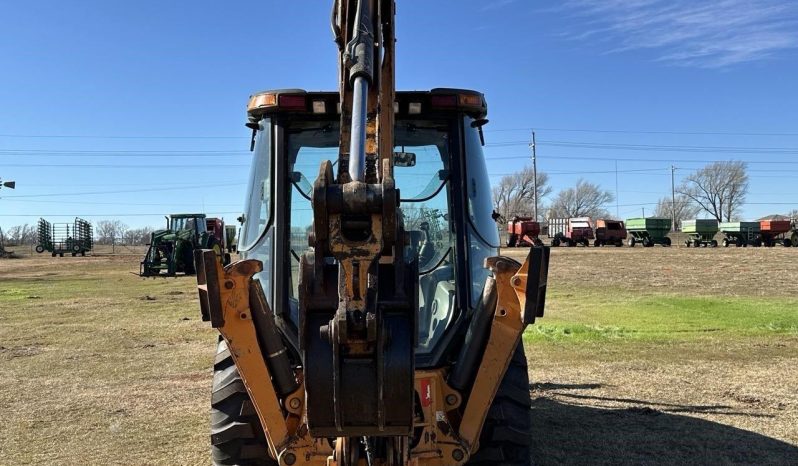

Backhoe Performance:

  • Standard Dig Depth: 14.77 ft (4.5 m)

  • Extended Dig Depth: 18.21 ft (5.55 m)

  • Reach (Standard): 18.28 ft | Reach (Extended): 21.66 ft

  • Bucket Digging Force: 11,622 lbs (5,272 kg)

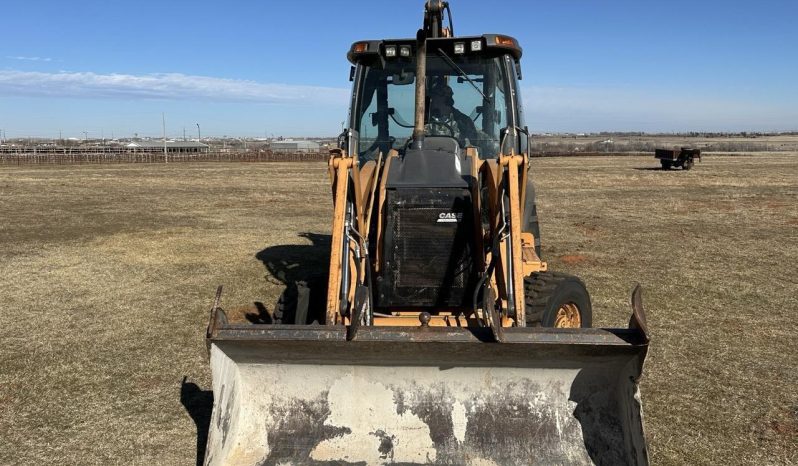

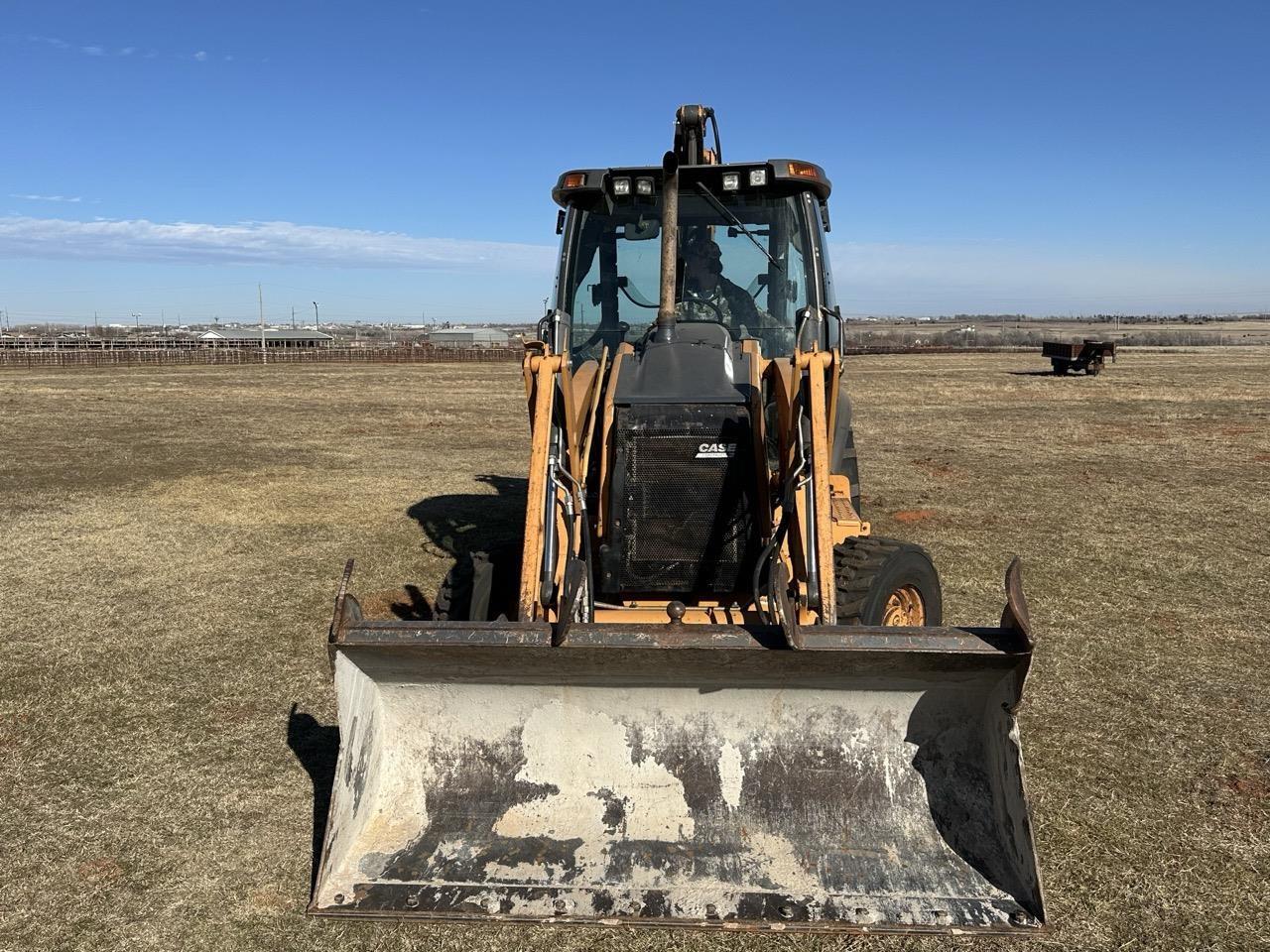

Loader Performance:

  • Max Dump Height: 8.83 ft (2.69 m)

  • Bucket Capacity: 1.1 yd³ (0.84 m³)

  • Lift Capacity at Full Height: 6,803 lbs (3,085 kg)

  • Bucket Width: 82 in (2.08 m)

Hydraulics:

  • Pump Flow: 28.5 gal/min (108 l/min)

  • System Pressure: 3,350 psi (23.1 MPa)

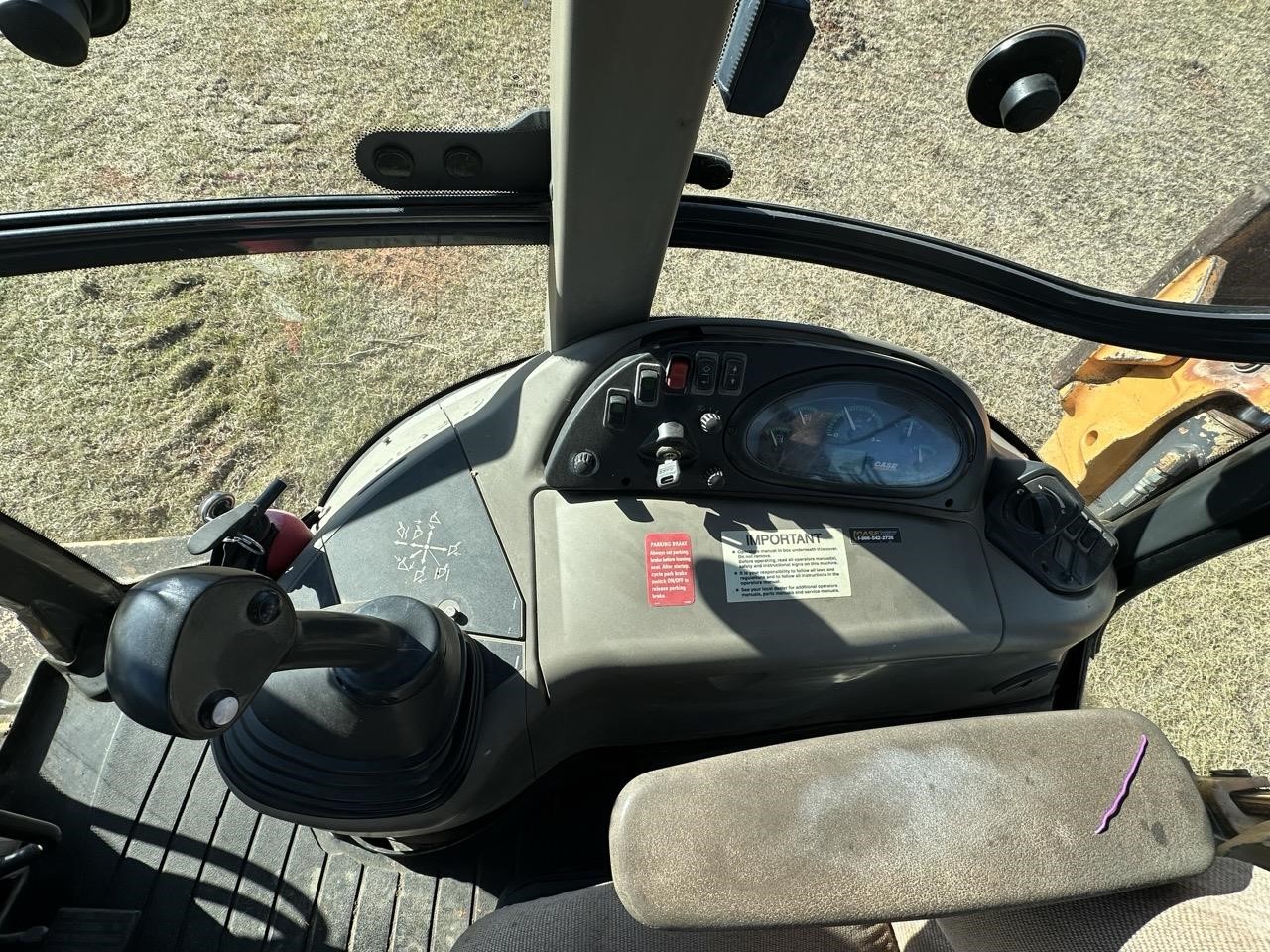

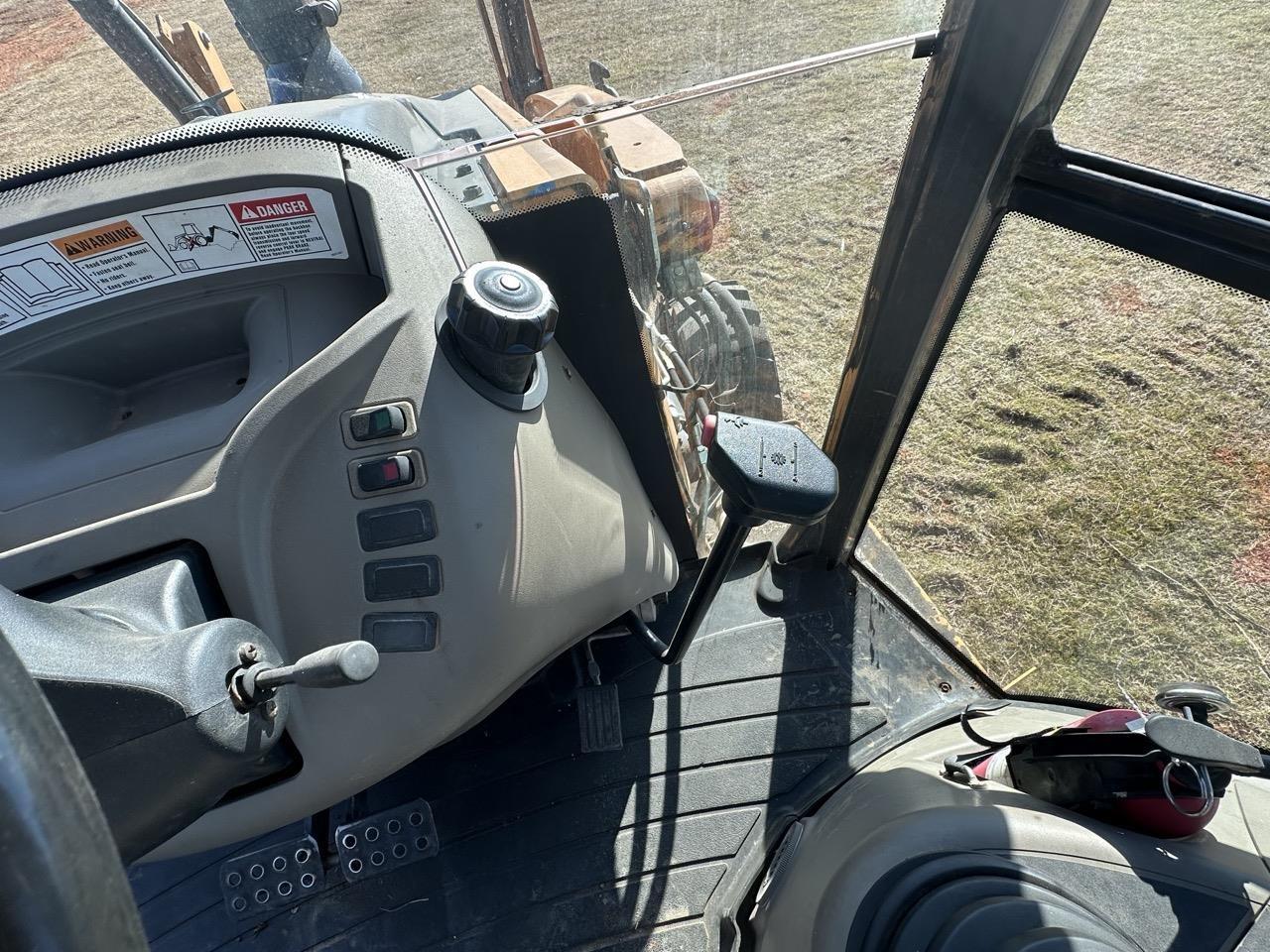

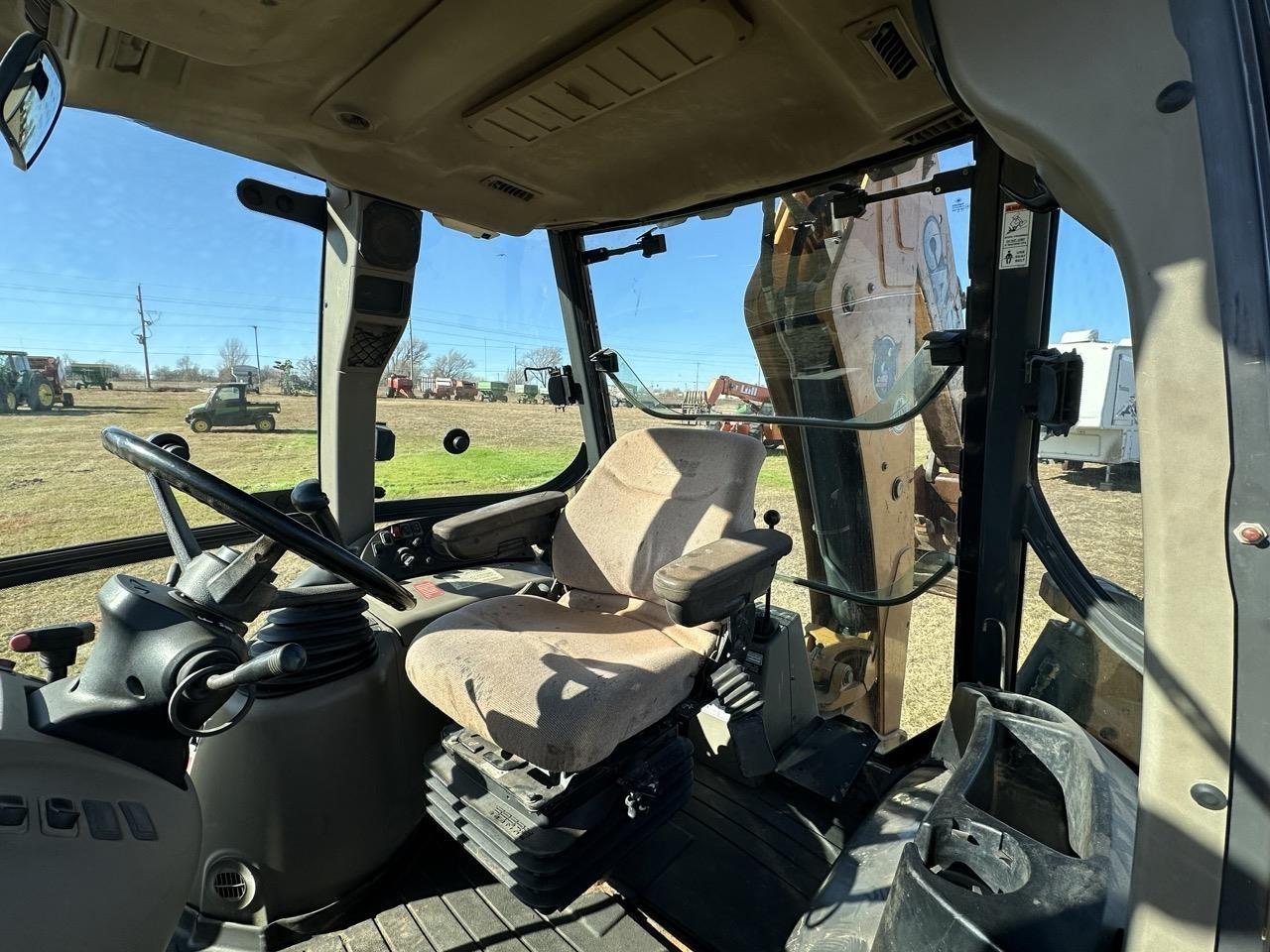

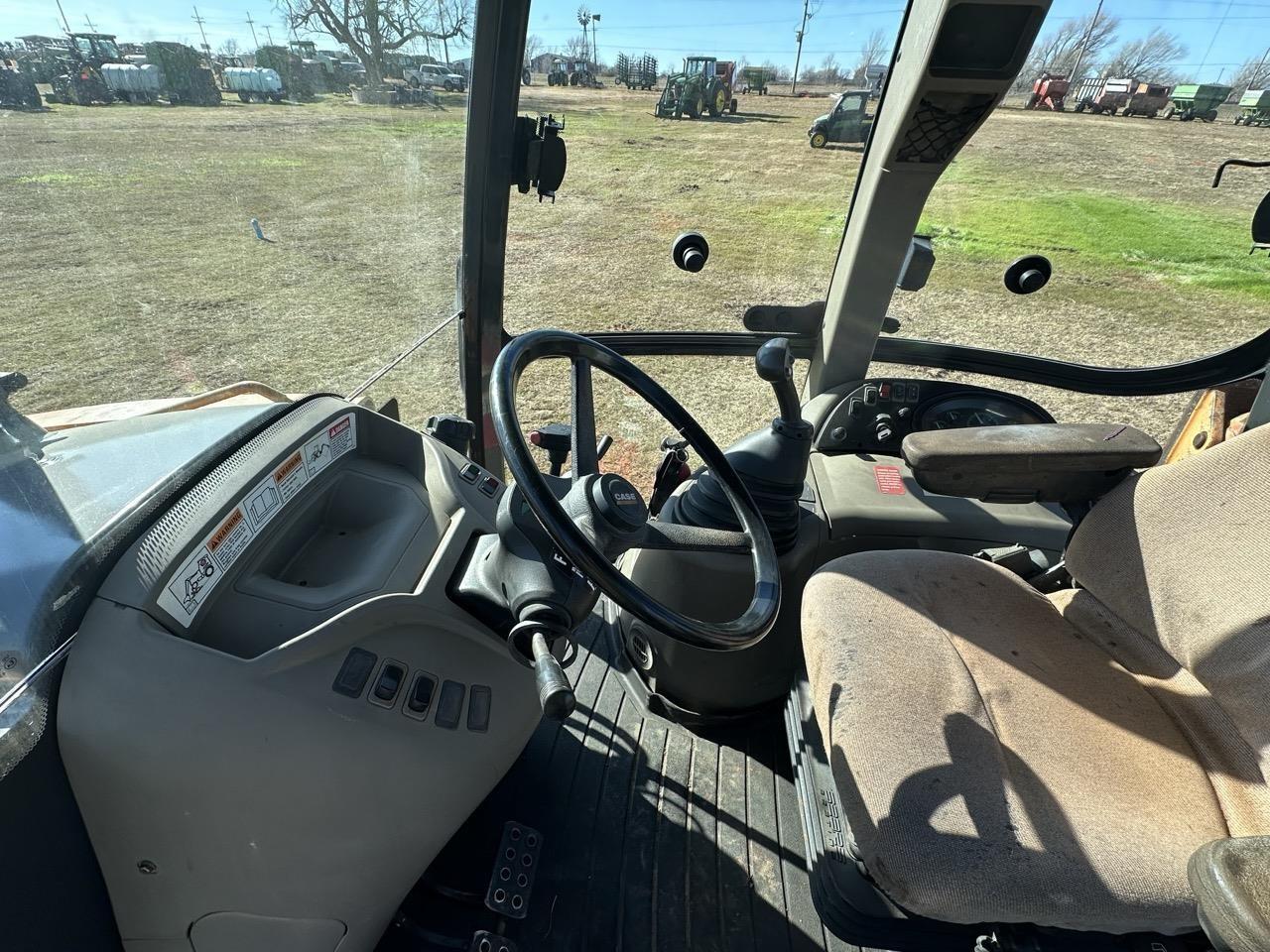

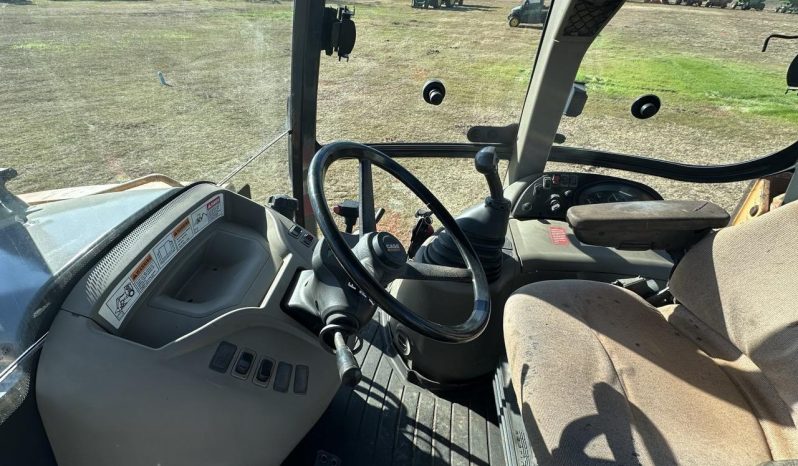

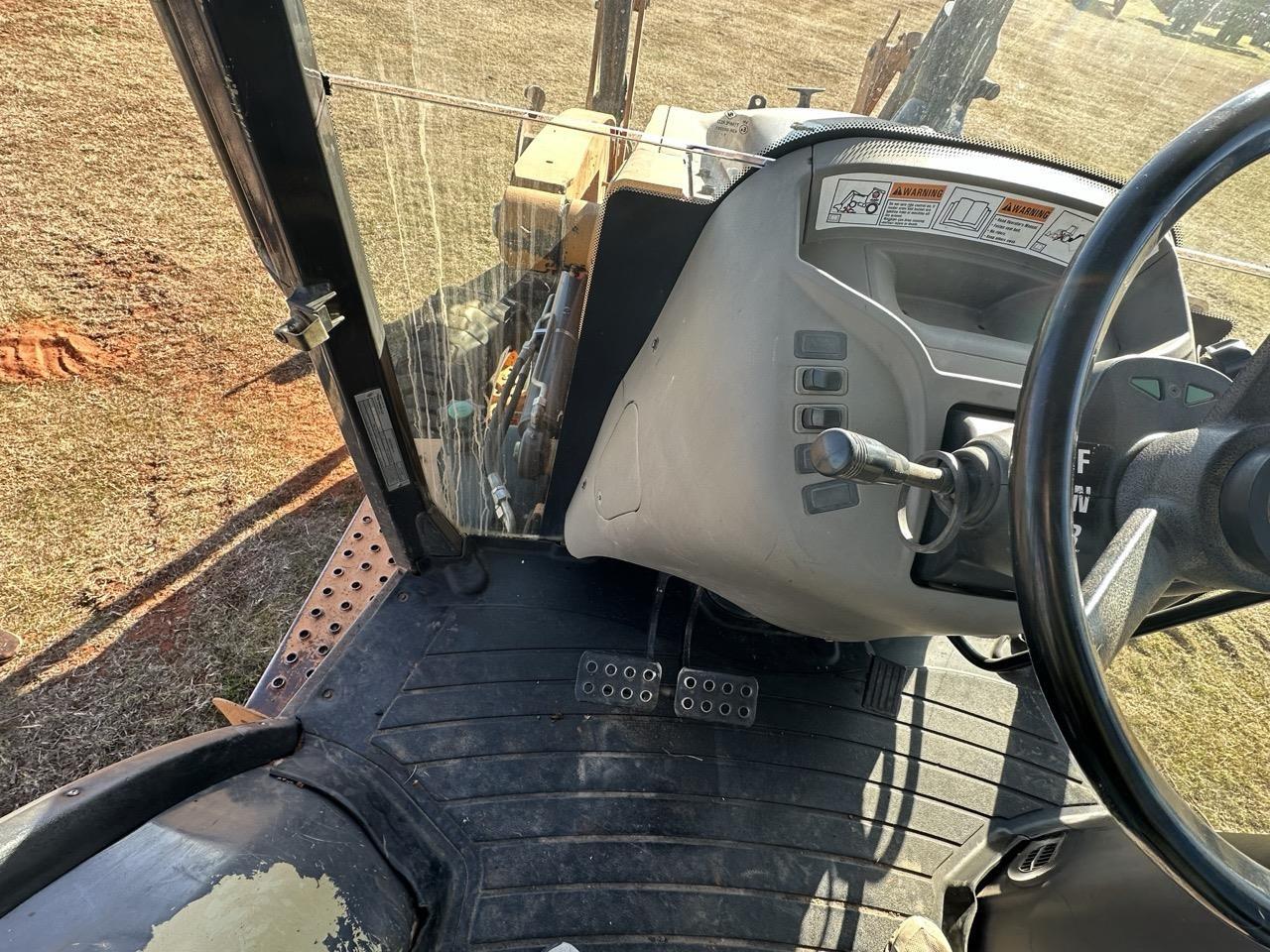

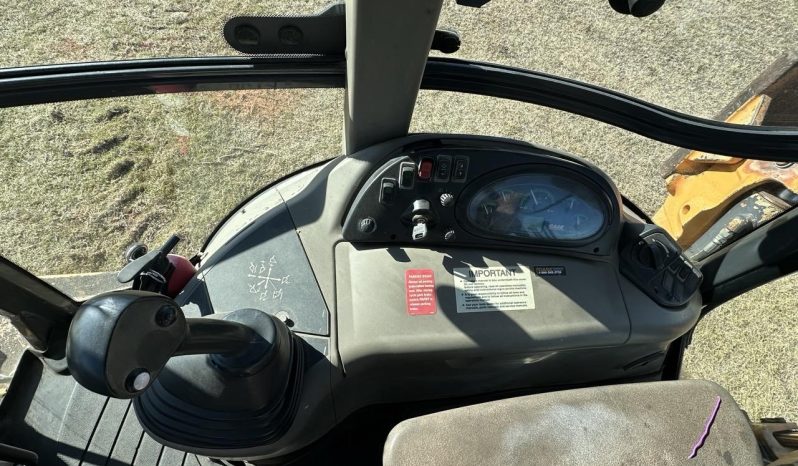

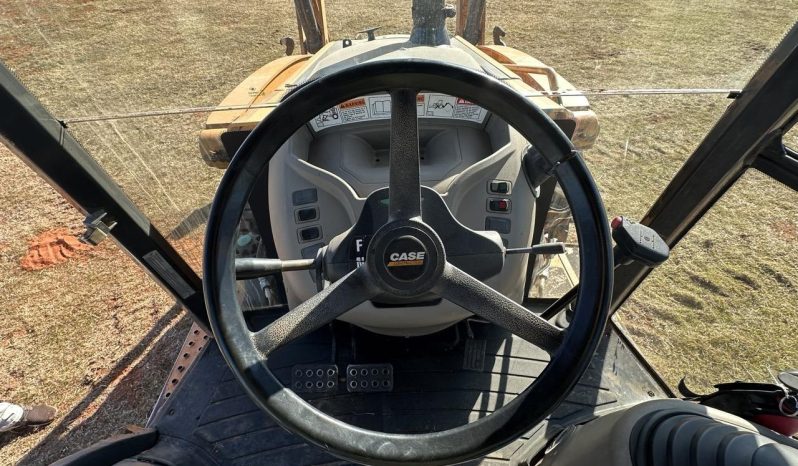

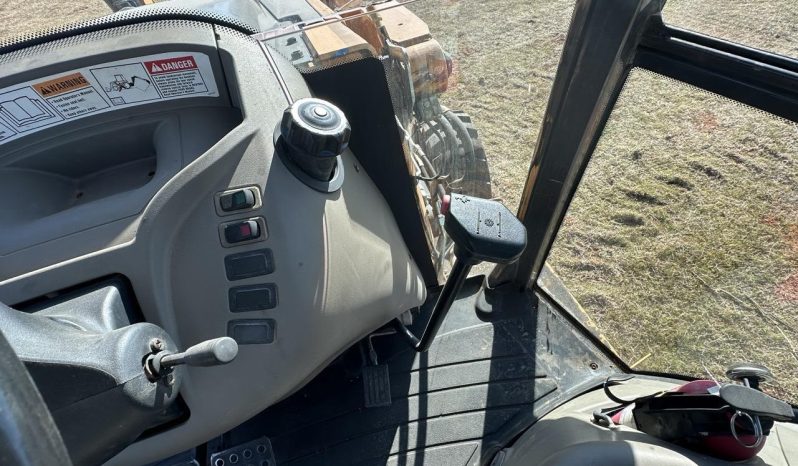

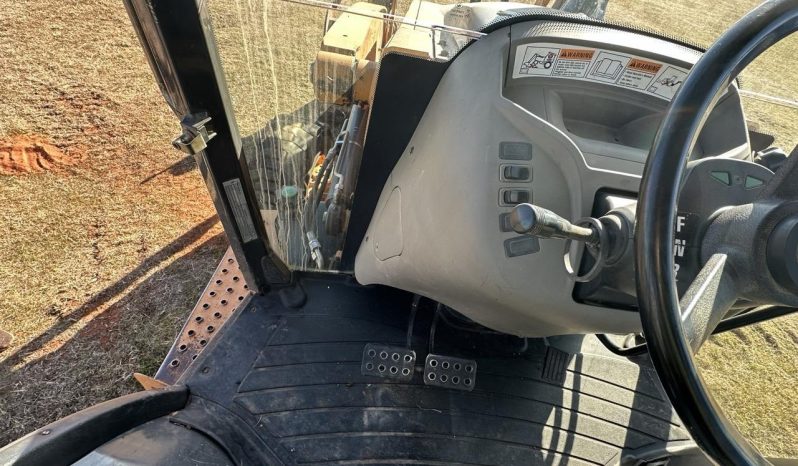

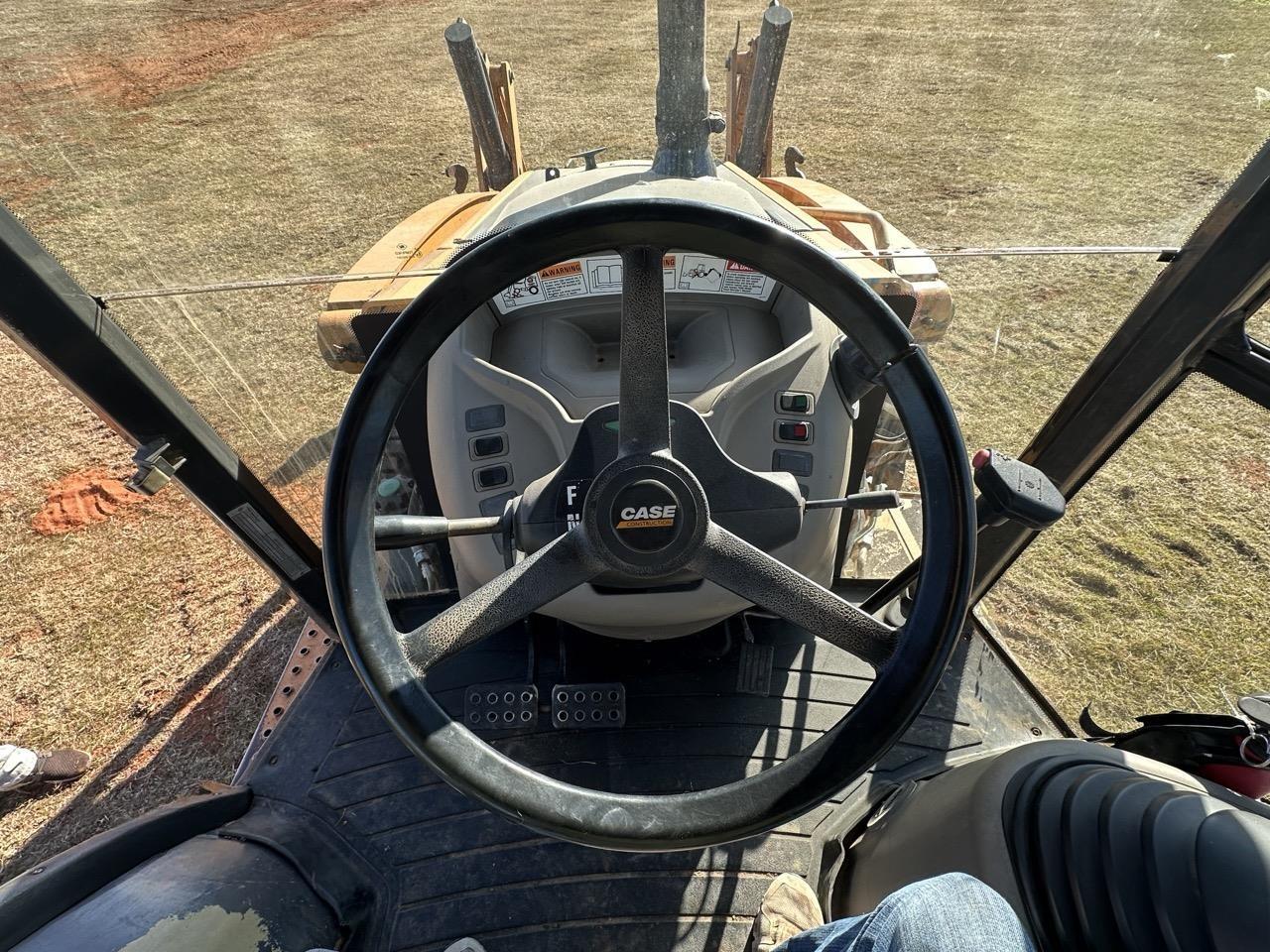

Operator Environment:

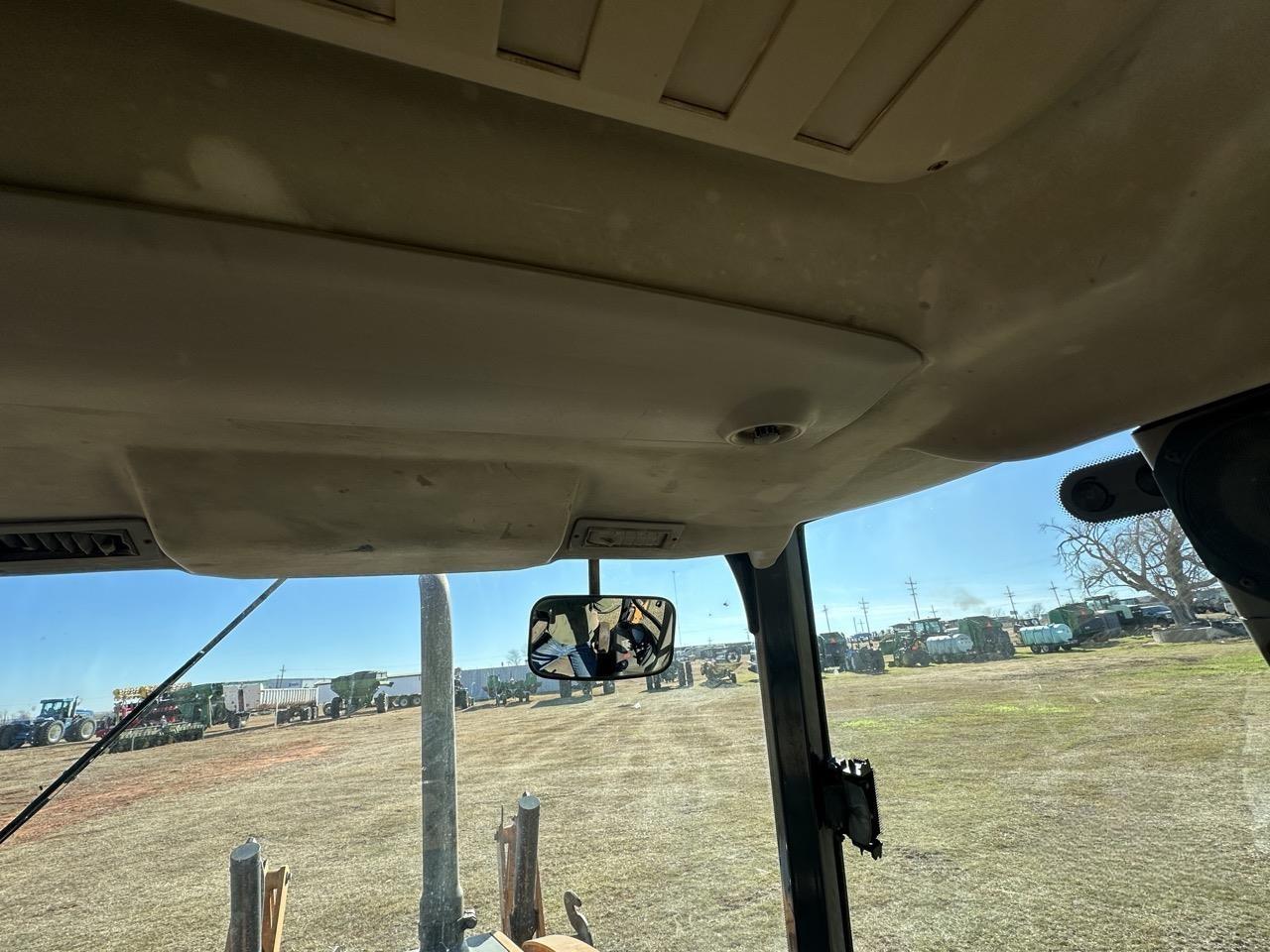

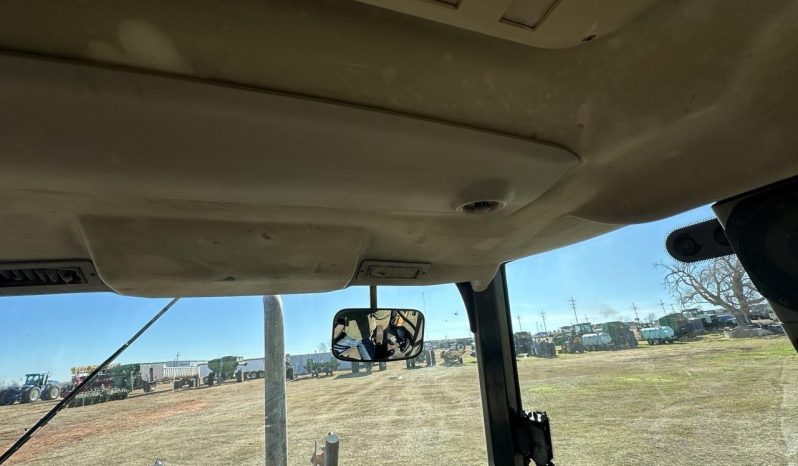

  • Cab: Enclosed, ROPS/FOPS certified

  • Climate Control: Air conditioning & heating

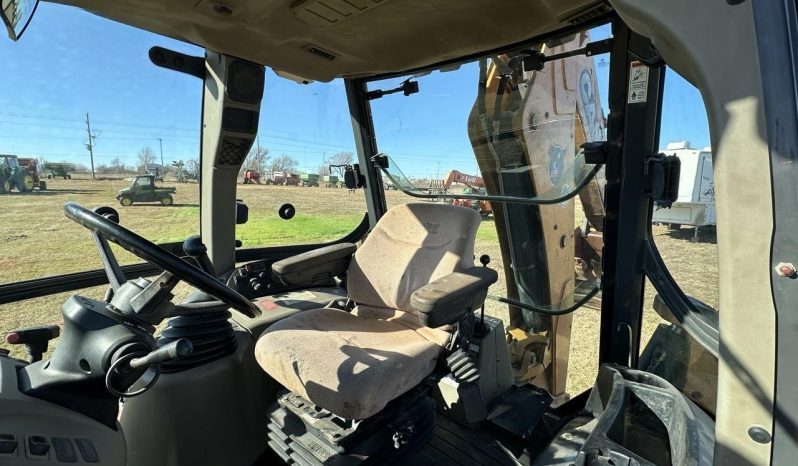

  • Seat: Mechanical suspension, 180° swivel

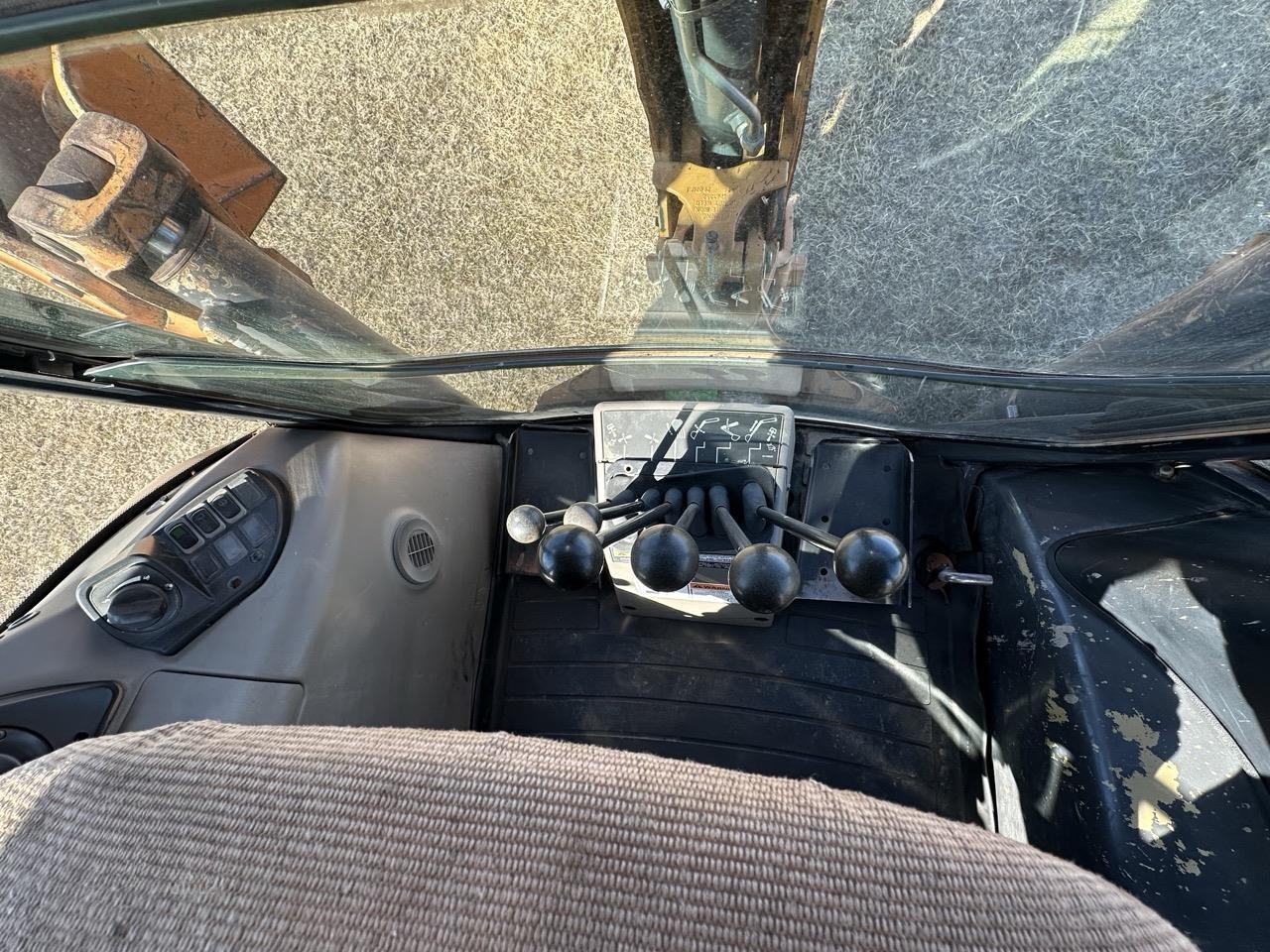

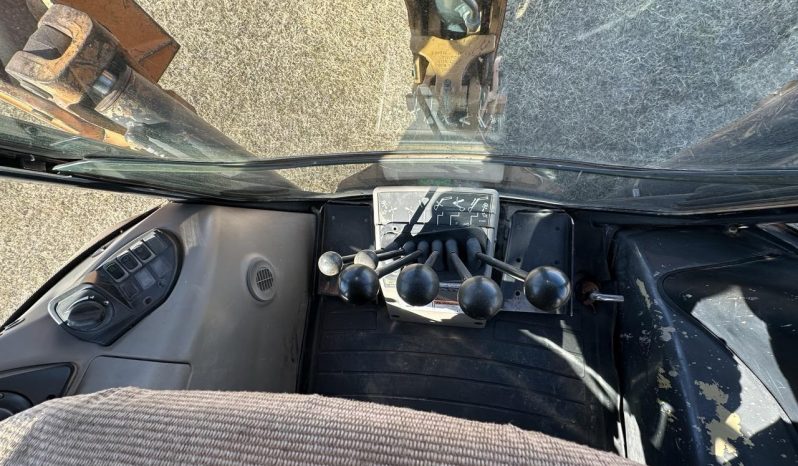

  • Controls: Single lever loader control with parallel lift & return-to-dig

Additional Features:

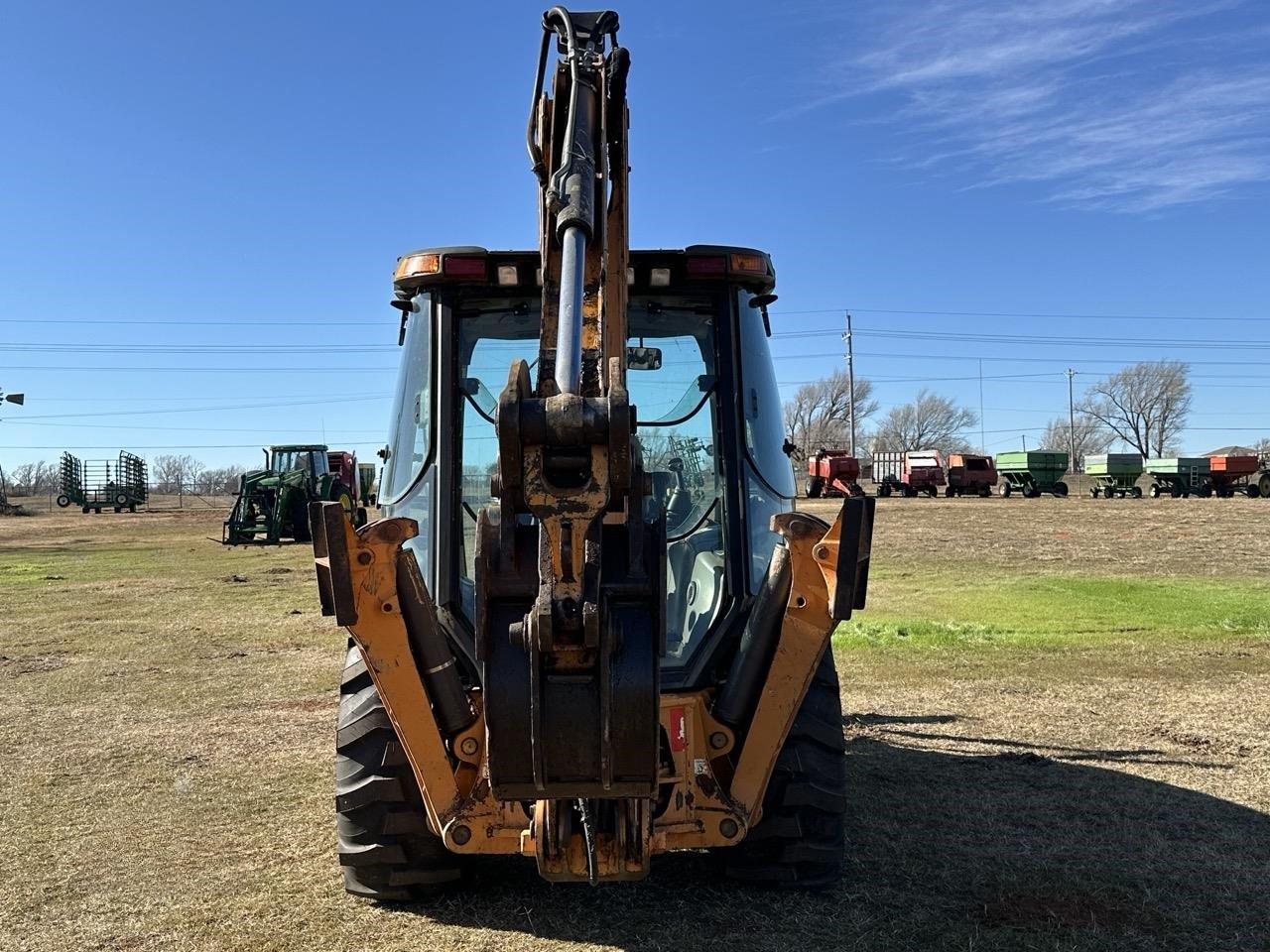

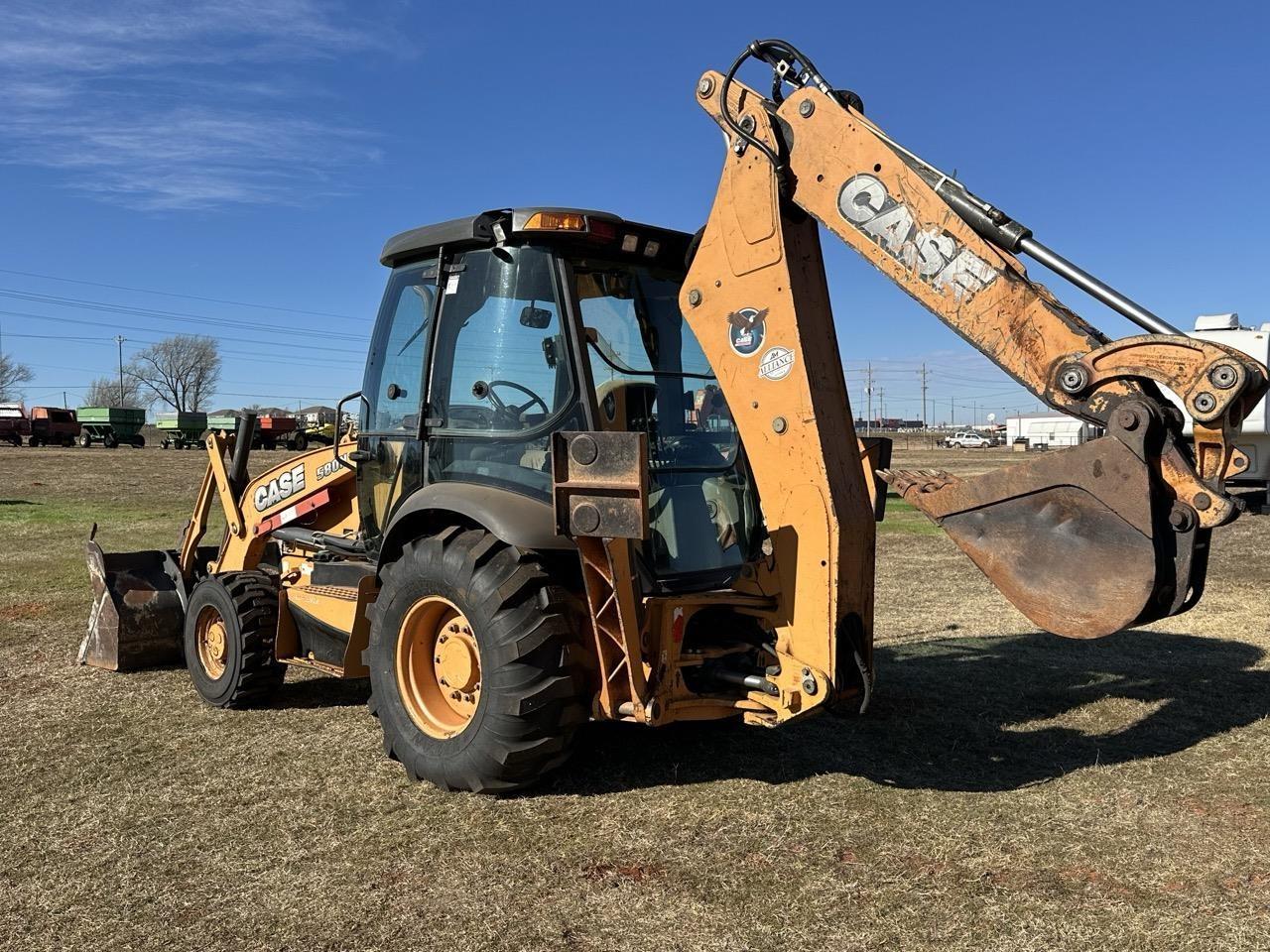

  • Extendahoe for increased reach and dig depth

  • Differential lock with on-the-go push-button activation

  • Wet multi-disc, self-adjusting service brakes

  • Owner-maintained and jobsite ready

This CASE 580N delivers the power, reach, and durability you need — without compromising operator comfort. Ready for immediate deployment on your next project.
